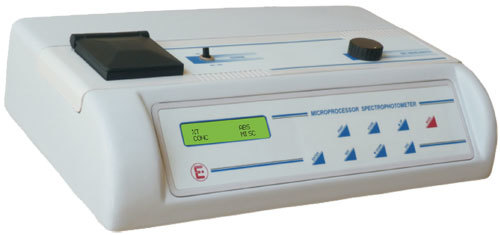

Microprocessor Spectrophotometer 1305

Microprocessor Spectrophotometer 1305
Microprocessor Spectrophotometer 1305
Product Code : Model 1305
Product Description

Microprocessor Spectrophotometer 1305

FEATURES

  • Highly Stable & Accurate
  • Range 340 To 960 nm
  • 16 X 2 Line Alphanumeric Backlit LCD Display
  • Printer Attachment Facility
  • Storage For 100 Samples
  • RS-232C Computer Interface (Optional)
  • Soft Touch Membrane Keys

This is the most economical, reliable, rugged and accurate instrument for spectrophotometric analysis of any concentration. It operates at a wavelength range of 340 nm to 960 nm. The output is available on a 16 x 2 line alphanumeric backlit LCD display in terms of %Transmission (%T), Absorbance (Abs.), Concentration (Conc.) and KFactor.

SPECIFICATIONS

Wavelength
Range
340 - 960 nm
Resolution%T: 0.1, Abs: 0.001, Conc.: 1
Output%T: 0 - 100, Abs: 0 - 1.999, Conc.: 0 - 1999
DetectorSilicon Photodiode
Light
Source
6V, 10W, Tungsten Halogen Lamp
Monochromator600 line/mm Diffraction grating
Sample
Holder
10 mm Glass Cuvettes
Spectral
Bandwidth
Less than 5 nm
Wavelength
Resolution
1 nm
Wavelength
Accuracy
± 1 nm
Repeatability± 2 nm
Display16 x 2 line alphanumeric backlit LCD display
Operating
Temp. Range
5°C - 45°C
Power230 V ± 10% AC, 50Hz
Dimensions
(L x B x H)
475 x 285 x 130 mm (Approx.)
Weight8.5 Kg (Approx.)
AccessoriesMatched Cuvettes: 1 Set, Operation Manual and Dust Cover
Note : Specifications are subject to change due to continuous improvements.
