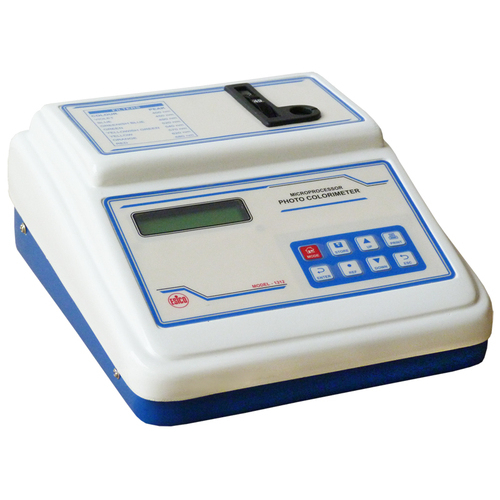

Microprocessor Photo Colorimeter 1312

Microprocessor Photo Colorimeter 1312
Microprocessor Photo Colorimeter 1312
Send Inquiry
Product Code : Model 1312
Product Description

Microprocessor Photo Colorimeter 1312

Microprocessor Photo Colorimeter - 1312 is a compact and easy to operate instrument for Photo Colorimeter analysis of any concentration. The output is available on a 16 x 2 line alphanumeric backlit LCD display in terms of %Transmission (%T), Absorbance (Abs.), Concentration (Conc.), and KFactor. This instrument has 100 sample storage memory and printer output facility for printing data with any dot matrix printer. The use of microcontroller has made it extremely versatile and accurate instrument. 10 mm pathlength matched test tubes are used for sample and blank. Facility has been provided to store the last KFactor and the standard concentration value. User can also enter any known 'Factor' for a test, thereby eliminating the need to re-run the standards again and again.

The use of high class standard wide range glass filters covering 400 to 700 nm give extremely good results. The filter setting is controlled by a rotating disc having 8 filters. An automatic shutter is provided to stop the light reaching the photocell, when test tube is not inserted in the tube holder. This increases the life of photocell tremendously.

FEATURES

  • Highly Accurate & Stable
  • Range 400 To 700 nm
  • 16 X 2 Line Alphanumeric LCD Display
  • Printer Attachment Facility
  • Storage For 100 Samples
  • Soft Touch Membrane Keys

SPECIFICATIONS

Wavelength Range

400 - 700 nm

Resolution

%T: 1, Abs: 0.01, Conc.: 1, KFactor: 1

% Transmission

0 - 100% T

Absorbance

0 - 1.99A

Concentration

0 - 19999

K Factor

1 -19999

Photo Detector

Silicon Photodiode /Photo Cell

Display

16x2 Line alphanumeric LCD display for %T, ABS., CONC., K Factor

Keyboard

8 Keys, soft touch membrane type

Light Source

LED

Sample System

10mm path lenght matched glass test tubes

Filters

400, 450, 490, 520, 540, 570, 620, 680 nm

Printer Interface

Printer interface for any dot matrix printer

Data Storage

Up to 100 Samples

Power

230 V + 10% AC, 50 Hz

Dimensions(L x B x H)

250 x 240 x 90 mm (Approx.)

Weight

3 Kg (Approx.)

Accessories

Matched Test Tube: A set of 5, Operation Manual and Dust Cover, Test Tube Stand

Note : Specifications are subject to change due to continuous improvements.
