Haemoglobin Meter

Haemoglobin Meter
Haemoglobin Meter
Send Inquiry
Product Code : Model 1315
Product Description

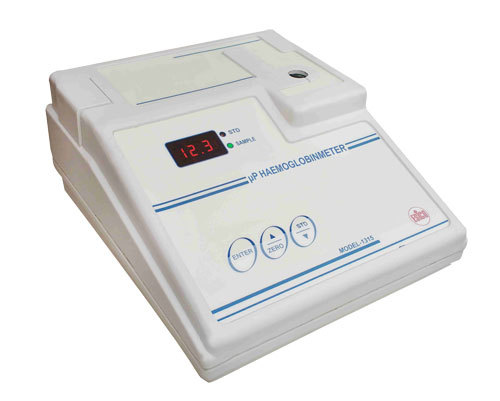

Haemoglobin Meter

Features

  • Direct Display in Hb. units
  • 1 ml Sample Volume
  • Highly Stable & Easy To Operate

Storage of Factor in Memory

Microprocessor Haemoglobin Meter - 1315 is used to determine the haemoglobin concentration in the blood sample. The measurement haemoglobin concentration is carried out at wavelength of 546 nm. Using state-of-the-art LED technology the green light produced is projected through the sample and measured by sensitive photodiode. The measurements are made using cyanmethemoglobin method used through the world.

Heamoglobin is an iron-containing protein found in the red blood cells. It enables the red cells, to carry oxygen from lungs to the rest of the body and carry carbon dioxide back. The haemoglobin level indicates the blood's oxygen-carrying capacity and can play a major role in the early diagnosis of many illnesses such as thelsemia, sickle cell anemia, leukemia, malaria and hook worm etc.

Technical Specifications

Measuring Method

Cyanmethemoglobin

Measuring Range

0 - 30 gm/dl of Hb.

Dilution Ratio

1:25 I

Sample Volume

1 ml

Display

3 Digit 7-Segment Red LED Display

Wavelength

546 nm

Keyboard

3 Keys, Soft Touch Memebrane Type

Zero Setting

Automatic

Calibration

Automatic

Detector

Highly sensitive silicon photodiode

Power

230 V + 10% AC, 50 Hz

Dimensions
(L x B x H)

195 x 235 x 105 mm (Approx.)

Weight

2.5 Kg. (Approx.)

Accessories

Matched Test Tube: (A set of 5),
Operation Manual and Dust Cover

Note : Specifications are subject to change due to continuous improvements.
