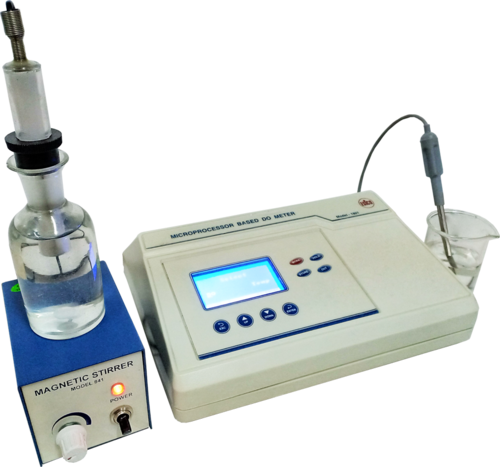

Microprocessor Dissolved Oxygen Meter 1801

Microprocessor Dissolved Oxygen Meter 1801
Microprocessor Dissolved Oxygen Meter 1801
Send Inquiry
Product Code : Model 1801
Product Description

Microprocessor Dissolved Oxygen Meter 1801

FEATURES

  • Highly Stable & Accurate
  • 128 x 64 dots Graphical LCD Display
  • 1000 Sample Storage Facility
  • Printer Attachment Facility
  • Auto/Manual Calibration
  • D.O & Temperature Measurements

Microprocessor Based Dissolved Oxygen Meter Mode - 1801 is a solid state instrument designed to provide the precise DO and Temperature measurements. The instruments uses the latest microprocessor technology and advanced engineering techniques so as to give enhanced accuracy and reproducibility. The system has user friendly prompts, which guide you throughout measurements process.

The system has 8 soft touch membrane keys for ease of operation, it has the storage facility for 1000 samples, which are retained in the memory even when the system is switched OFF. Provision has also been made for attachment of centronics parallel port dot-matrix printer so that any of the stored results can be printed.

This is extremely useful for agriculture and soil analysis laboratories, fisheries, water quality control in boiler feed water, water works department, breweries, water purification plants, chemical & pharmaceutical industries etc.

SPECIFICATIONS

Range

DO: 0 - 20 ppm
Temp.: 0 - 100 oC (Auto/Manual)

Display

128 x 64 dots Graphical LCD Display

Keyboard

8 Keys, Soft Touch Membrane Type

Printer

Through RS 232 for serial printer using 80 column Dot Matrix Printer

Storage

Upto 1000 Samples

Power

230 V + 10% AC, 50 Hz

Dimensions

270 x 202 x 80  (LxBxH)

Weight

0.8 Kg (Approx.)

Accessories

DO Probe, Temperature Probe, DO Membranes, Stirrer, Magnetic Capsule, Mains Lead, Operation Manual and Dust Cover

Note : Specifications are subject to change due to continuous improvements.
