Microprocessor Flame Photometer

About Microprocessor Flame Photometer

Features

• Microprocessor Based with Printer Interface
• Auto Gas Cutoff (Model - 1385)
• Auto Flame Failure Detection (Model - 1385)
• Four Measurements in Single Aspiration
• Setup Storage Facility
• Sample Data Storage Facility
• Curve Calibration Programmability using Maximum of 25 Standards
• Multiple Calibration Curve Saving Facility
• Data Processing Through Curve Fitting Techniques, Least Square, Quadratic
• Online Help Key
• Direct Results in ppm and meq
• Useful for Medical & Soil Testing

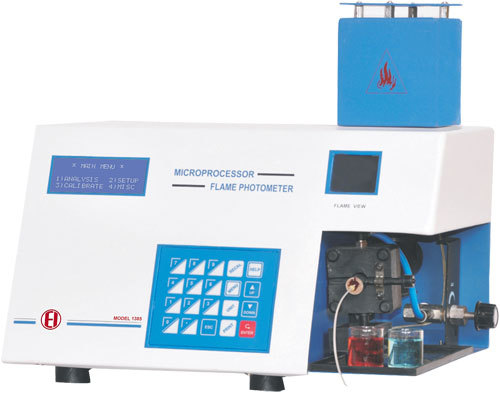

MICROPROCESSOR FLAME PHOTOMETER, MODEL 1385 comes with Flame Failure detection and Auto Gas Cutoff Facility. In case of power failure, the gas cuts off automatically. In case the flame goes off accidently during work, the flame failure alarm sounds after a few seconds.

Both Microprocessor Flamephotometers Model 1385 & Model 1382 are used for the determination of Sodium, Potassium, Calcium, Lithium & Barium. They use latest Microcontroller technology and have soft touch membrane keys for ease of operation. The solution is aspirated through an atomizer. Air, sample and the fuel are mixed in the mixing chamber which is then sprayed as a very fine mist into the flame. Radiations from the flame passes through a specific narrow band interference filter and pass to the photo-detector. The final results are displayed on the 20 x 4 alphanumeric LCD. The standard model comes with 2 filters (Na & K). Additional filters Ca & Li are optional at extra cost.

In both the models, Calibration can be done with up to 25 standards of user choice(5 point for each element) and non-linearity correction is provided through an automatic curve fitting software. Facility has been provided for re-standardization with a single standard.

SPECIFICATIONS

Mode	General	Serum	Urine
Range	Na: 0 - 100 ppm Upto 250 meq/l, 1:100 dil K: 0 - 100 ppm Upto 250 meq/l, 1:100 dil Ca: 0 - 100 ppm Upto 250 meq/l, 1:100 dil Li: 0 - 100 ppm Upto 250 meq/l, 1:100 dil	Na: 0 - 200 1:100 dil K: 0 - 10 1:100 dil - Li: 0 - 2 1:5 dil	Na: 0 - 250 1:100 dil K: 0 - 100 1:100 dil Ca: 0 - 10 1:2 dil -
Sensitivity	General: Na: 0.5 ppm, K: 0.5 ppm, Li: 0.5 ppm, Ca: 15 ppm
Filters	Na & K supplied (Ca & Li are optional at extra cost)
Resolution	0.1 ppm/meq
Reproducibility	< 1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as maximum standard
Curve Fit Accuracy	< 2% error when 3 ppm Na/K and 5 ppm Li are set as maximum standards
Display	20 x 4 alphanumeric LCD with backlit
Average Time	In-built in software
Flame System	LPG and dry oil free air
Detector	Silicon photodiode
Calibration	with up to 25 Standards of User Choice with Curve Fitting Software (5 for each Element) Multiple Calibration Curves can be stored in the memory
Gas Control	Adjustable with knobs
Flame Failure	Auto detection (Model - 1385)
Gas Cuttoff	Automatic (Model - 1385)
Ignition System	Auto ignition
Automiser	Axial flow type
Printer	Provision for attachment of dot matrix printer or HP laserjet/ inkjet (non-windows) printers with centronics parallel interface
RS-232C	Available (PC software at extra cost)
Power	230 V + 10% AC, 50 Hz
Dimensions	285 x 255 x 210 mm (L x B x H) (Approx.)
Weight	7.5 Kg (Approx.)
COMPRESSOR UNIT
Air Supply	By oil free mini compressor unit with pressure regulator
Combustion Gas	LPG controlled by precision regulator
Power	230 V + 10% AC, 50 Hz
Dimensions	290 x 255 x 210 mm (L x B x H) (Approx.)
Weight	8 Kg (Approx.)

Note : Specifications are subject to change due to continuous improvements.

Advanced Design for Reliable Performance

Built with durable plastic and compact dimensions, the Microprocessor Flame Photometer ensures longevity and ease of handling. Its microprocessor control mode facilitates consistent and highly accurate results, catering to the demanding requirements of modern laboratories.


Efficient Power Management

The device operates efficiently on a standard 230 V 10% AC, 50 Hz power supply and consumes only 10 watts, making it energy-efficient. The stable 240-volt operation ensures smooth and safe functioning during extended use.


Applications Across Multiple Industries

Used primarily in chemical analysis, research laboratories, educational institutes, and industrial quality control, the flame photometer fulfills diverse needs. Its dependable operation and precise measurements make it valuable for routine and specialized analytical workflows.
