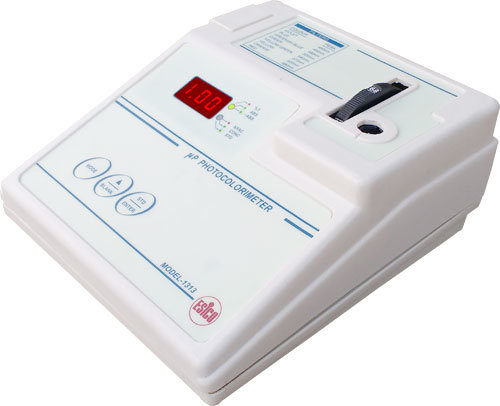

Microprocessor Photo Colorimeter 1313

Microprocessor Photo Colorimeter 1313
Microprocessor Photo Colorimeter 1313
Send Inquiry
Product Code : model 1313
Product Description

Microprocessor Photo Colorimeter 1313

Microprocessor Photo Colorimeter  1313 is a compact and easy to operate instrument for Photo Colorimeter analysis of any concentration. The output is available on a 3 digit seven segment red LED display in terms of %Transmission (%T), Absorbance (Abs.), and Concentration (Conc.) and KFactor. This is a unique system that combines convenience with accuracy and precision in analysis.

The instrument includes a wide range of filters covering wavelength from 420-680 nm in the form of in-built filters. The filter setting is controlled by a rotating disc. An in-built shutter control is provided to avoid fatigue of photodiode. When the instrument is switched on, Lamp glows and light passes through the solution to the detector and absorbance or %T measurement is taken. Light source is pre-focused tungsten lamp. The instrument confirms to all general & safety standards.

FEATURES

  • %T, Abs, Conc. & KFactor mode
  • 1 ml Sample Volume
  • Auto Zeroing Facility
  • Highly Stable & Accurate
  • Range 400 to 700 nm
  • Soft Touch Membrane Keys

SPECIFICATIONS

Wavelength Range

400 - 700 nm

Filter System

In-built filter disc with 8 standard filters

Sample Size

1 ml

Sample System

10 mm path-length matched glass test tubes

Detector

Silicon Photodiode

Display

3 Digit 7-Segment Red LED Display

Keyboard

Soft Touch Membrane Keys

Light Sources

LED

Readout

%T: 0 - 100, Abs: 0 - 1.99, Conc.: 1.0 - 999, KFactor: 1.0 - 999

Power

230 V + 10% AC, 50Hz

Dimensions
(L x B x H)

192 x 238 x 103 mm (Approx.)

Weight

2.5 Kg (Approx.)

Accessories

Matched Test Tube: (A set of 5), Operation Manual and Dust Cover

Note : Specifications are subject to change due to continuous improvements.
